Island Cottage

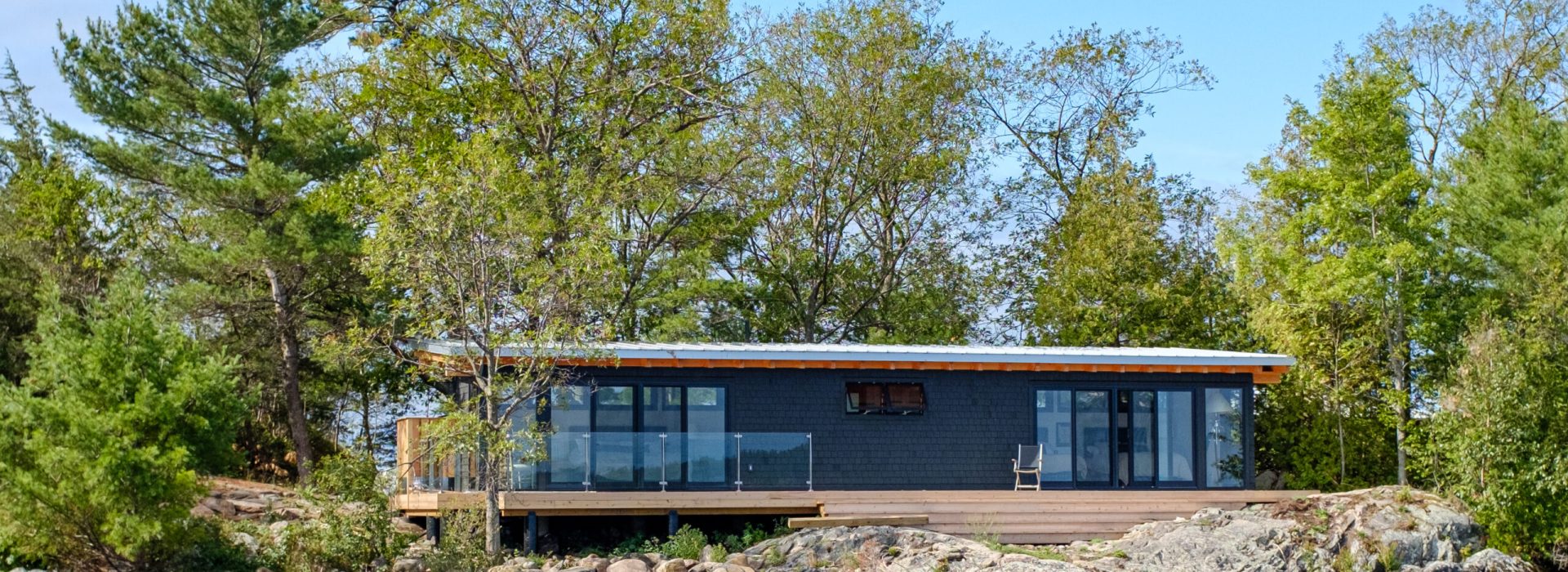

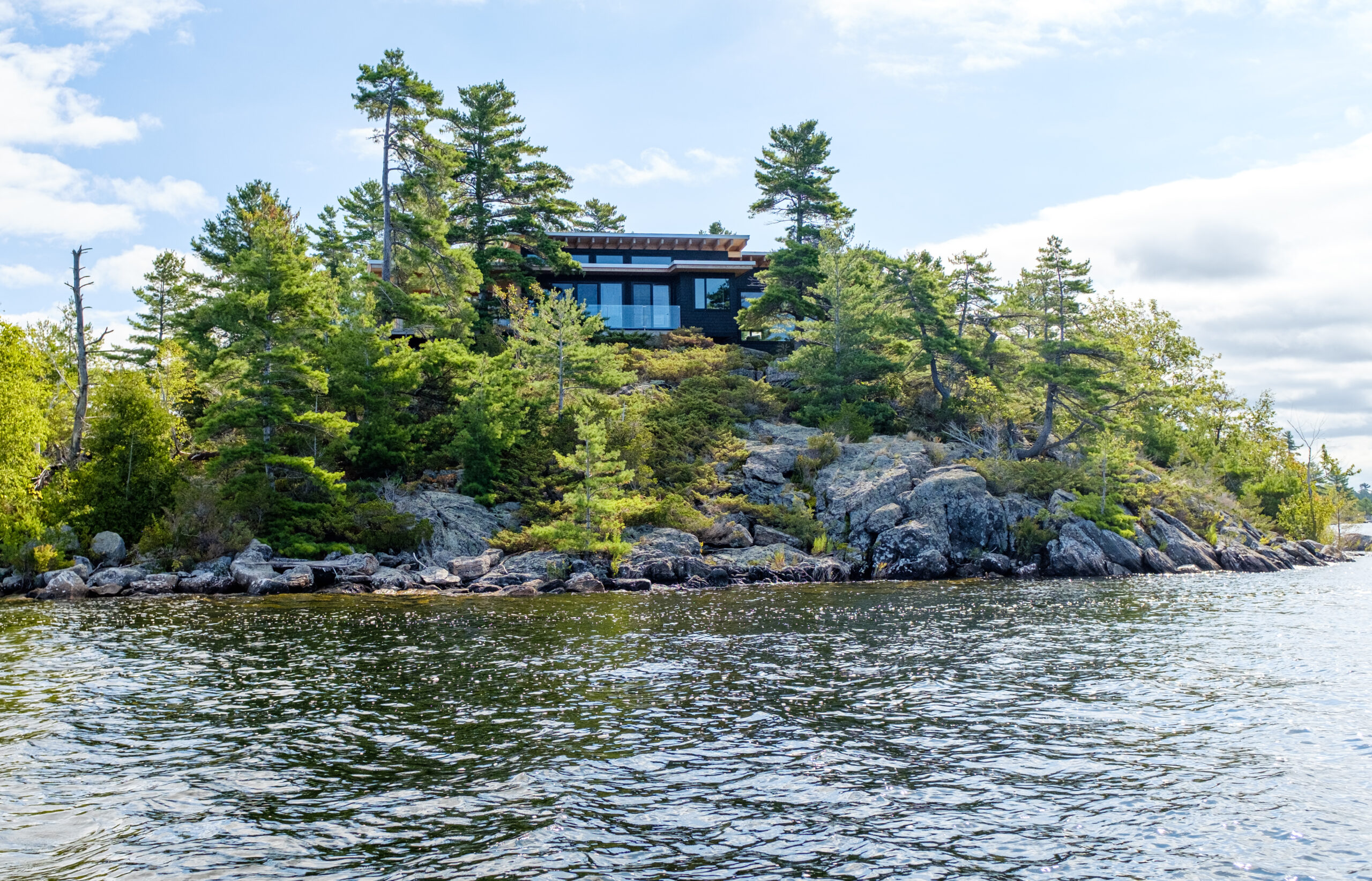

A single-storey cottage on a private island.

Designed by James Ireland Architect

Details

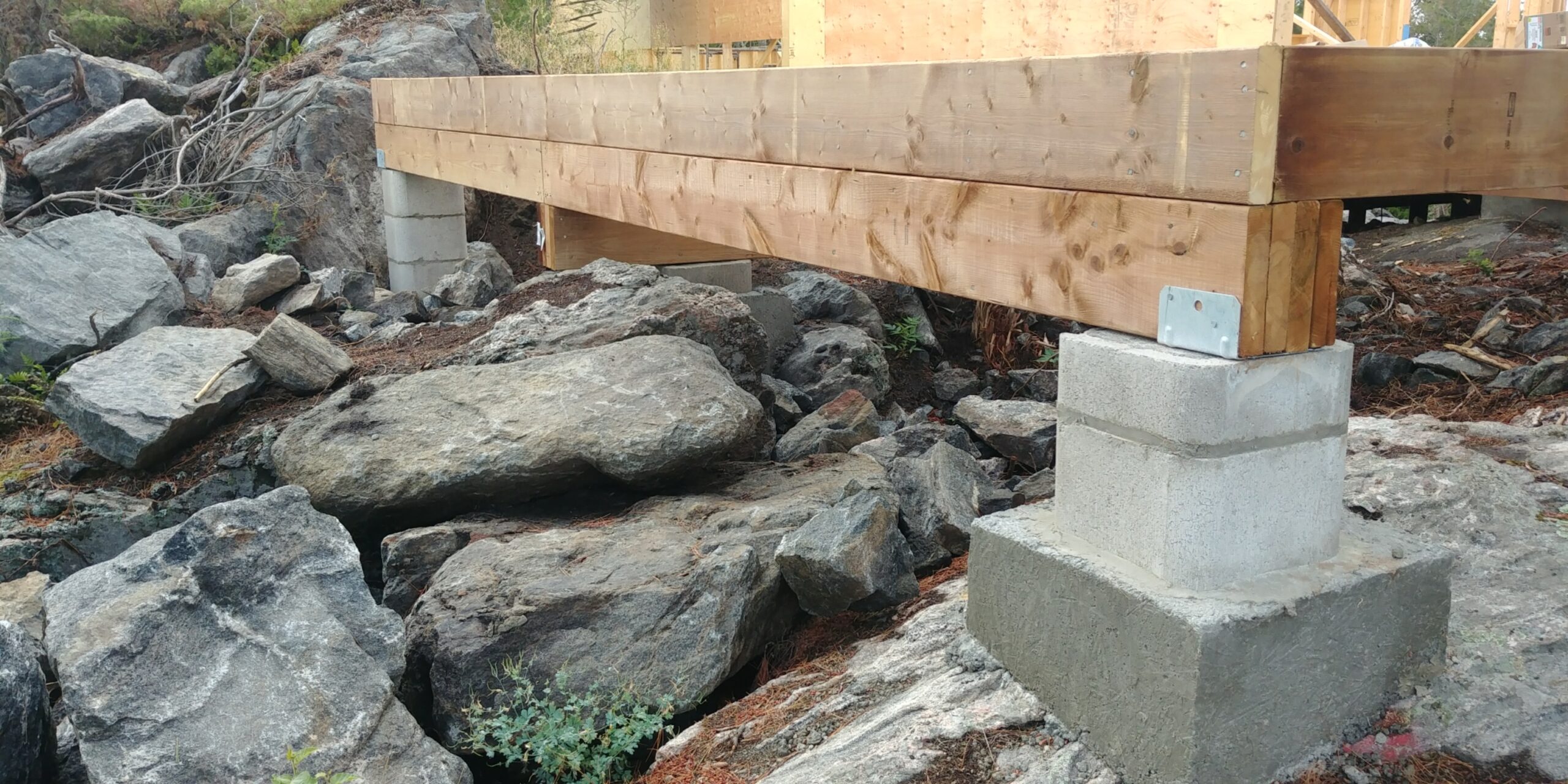

Concrete Piers on Bedrock

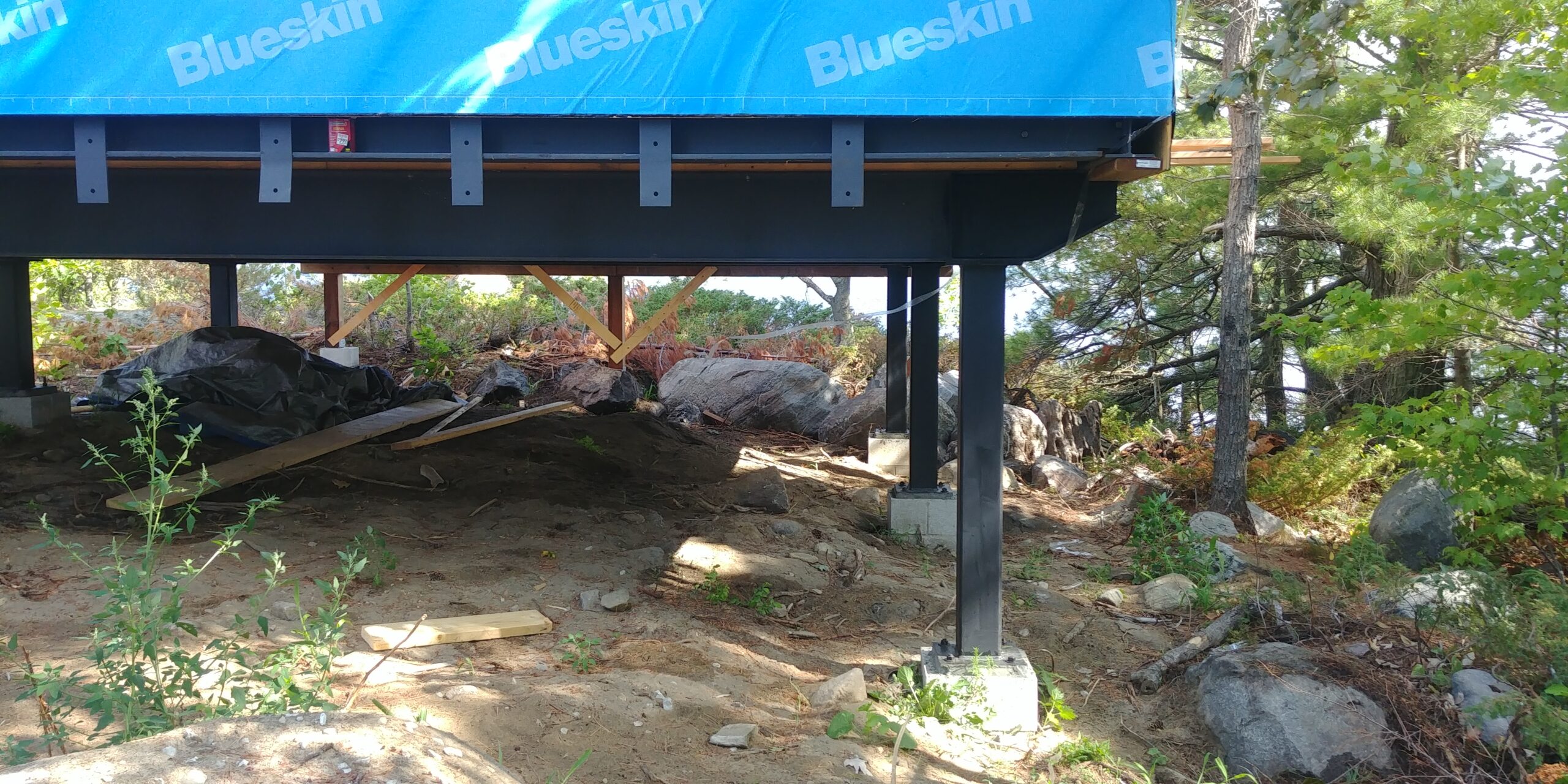

Cantileavered Steel Floor Beams

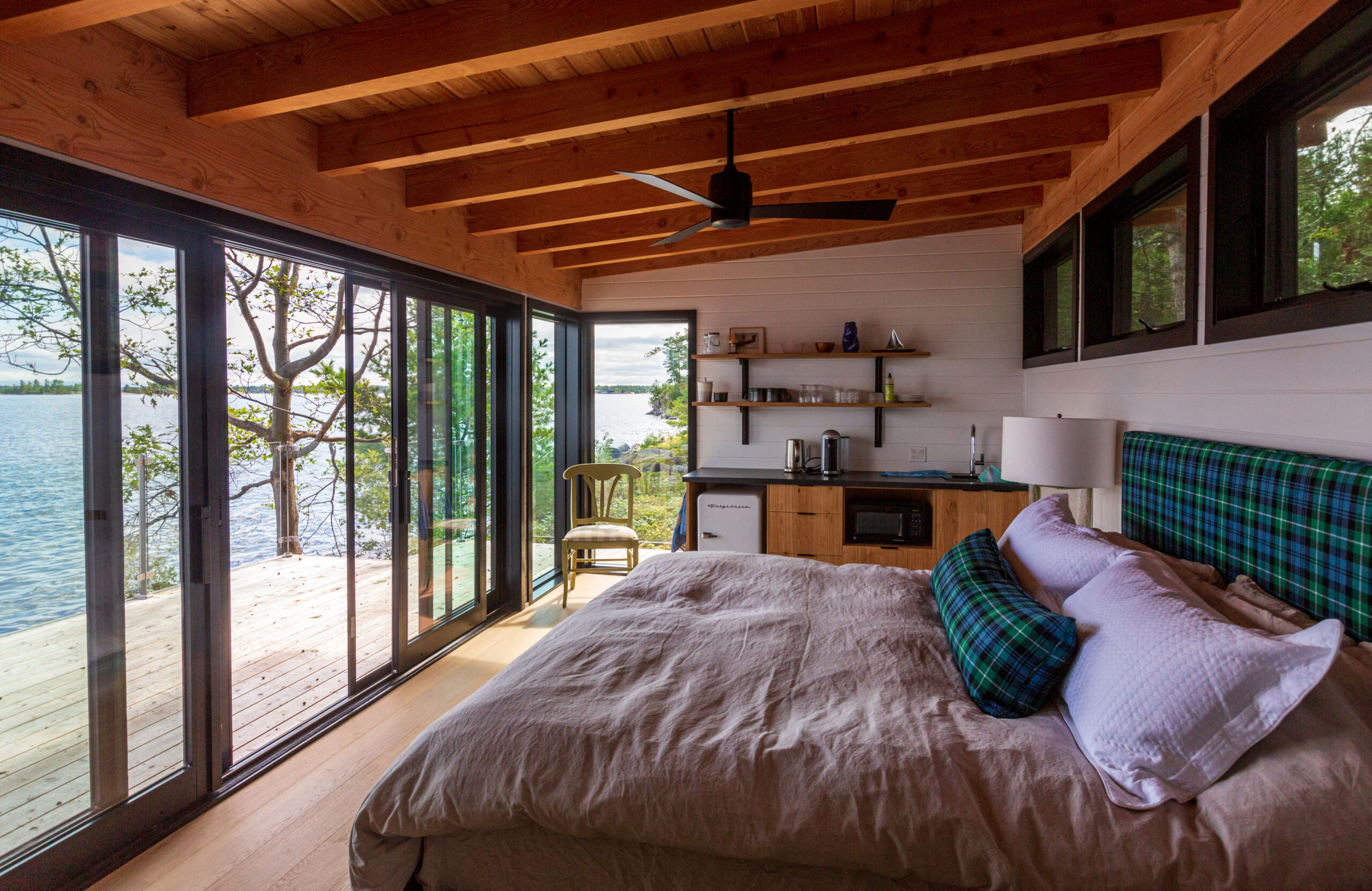

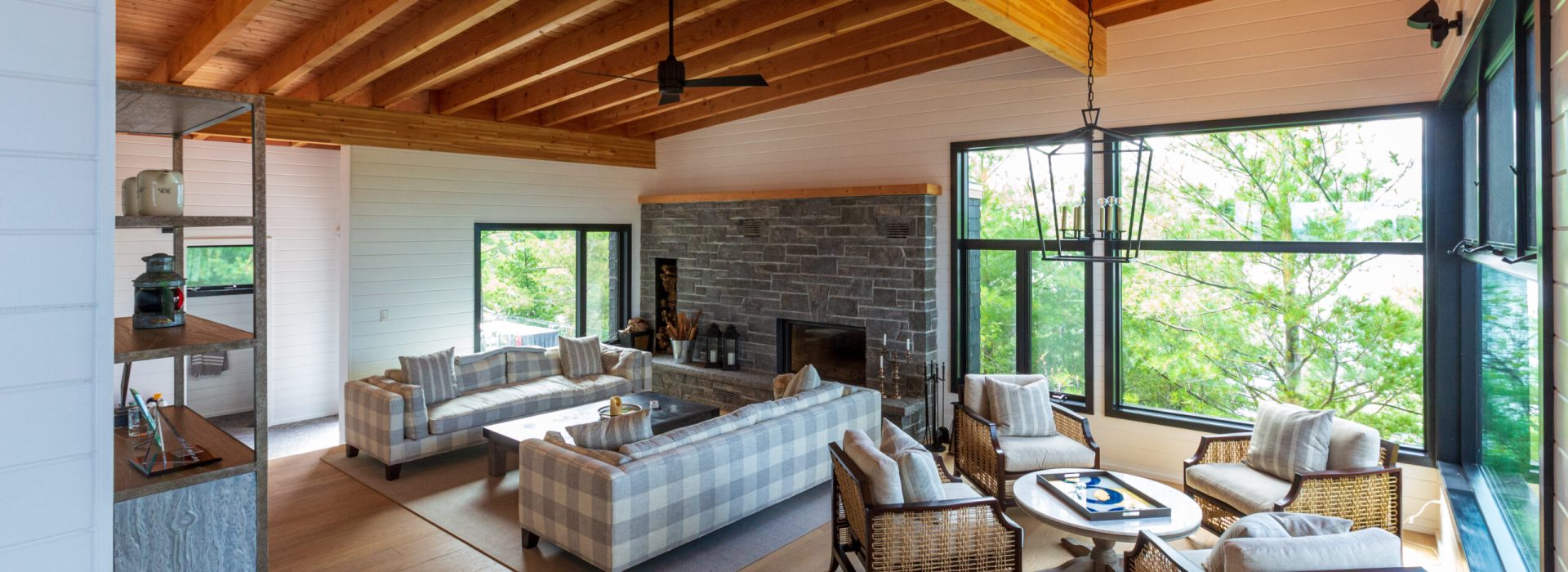

Exposed Roof Glulam Beams

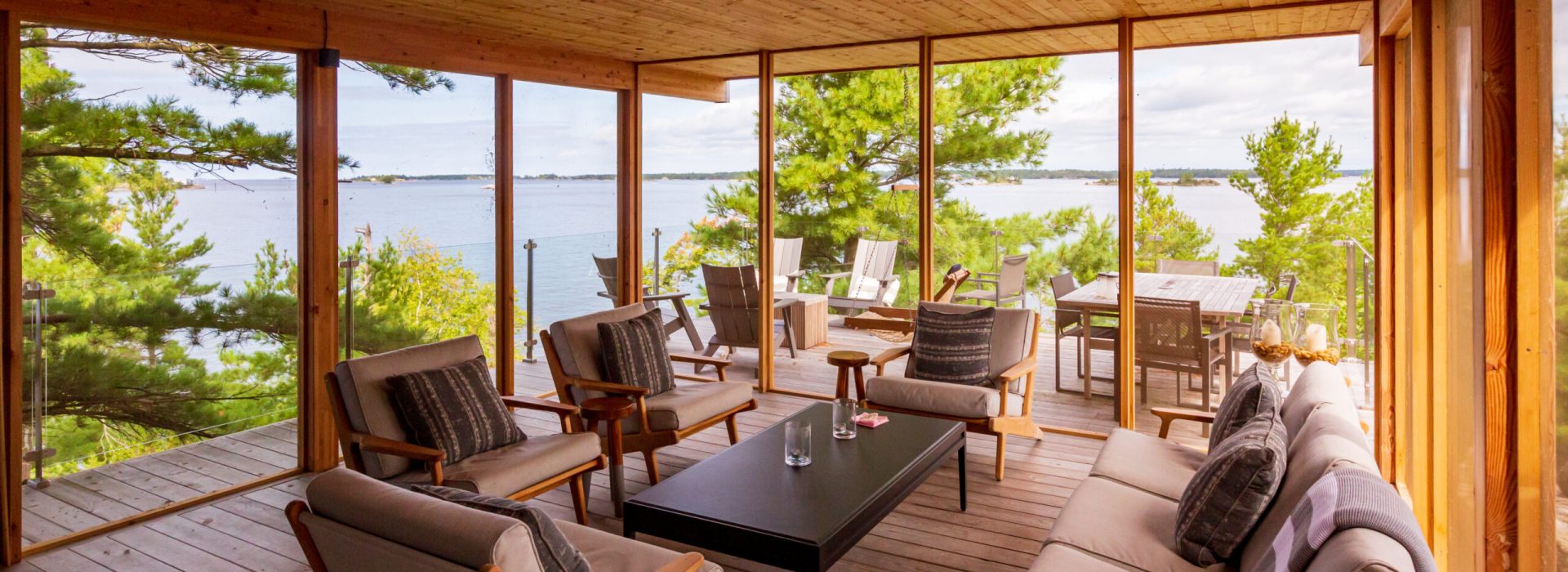

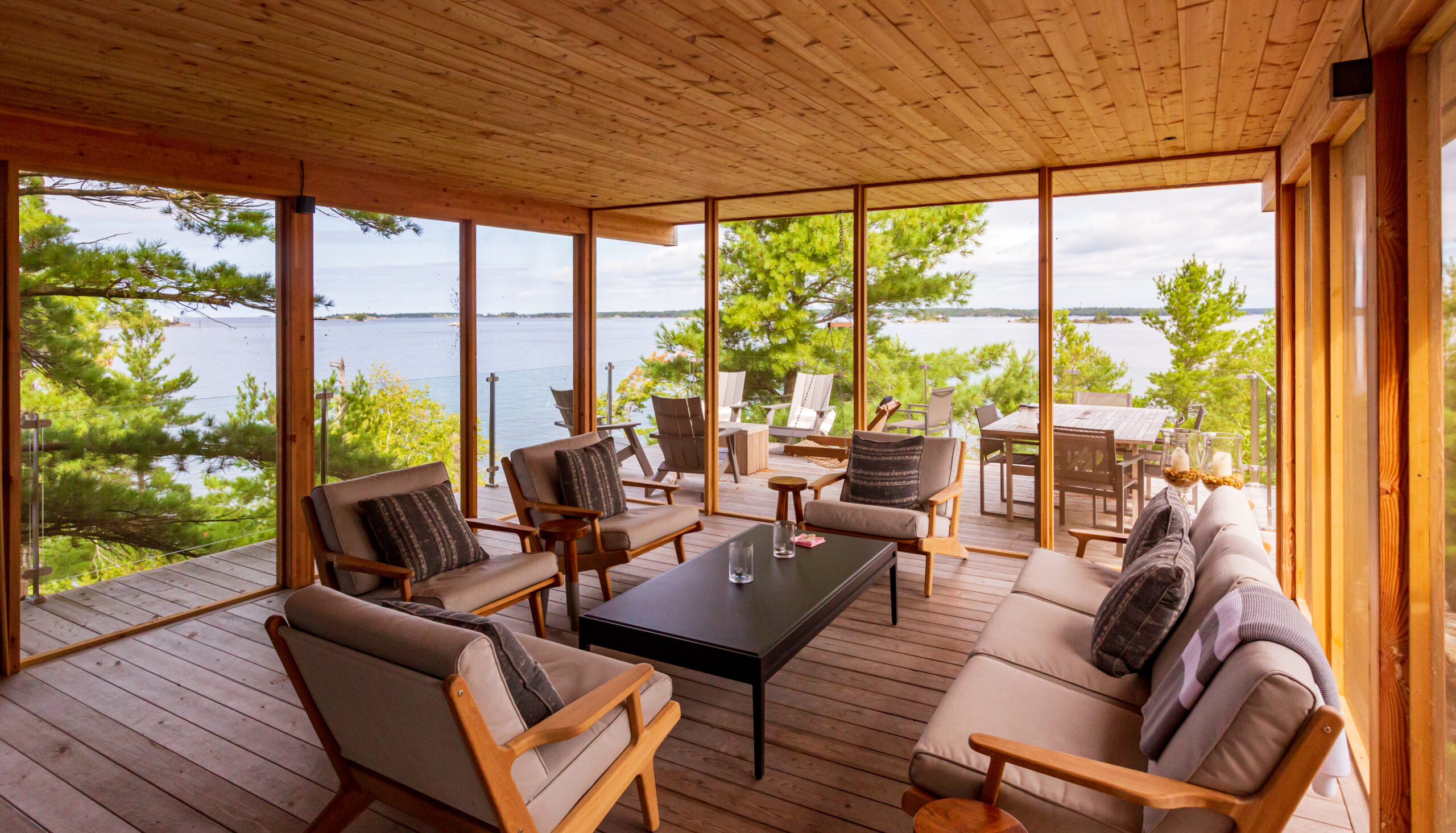

Hidden Structure: Formed small patch concrete piers on bedrock. Used structural steel as a base for the main cottage with sawn wood for the decks. A mixture of exposed glulam and sawn lumber roof joists is the vision from James with the client.
